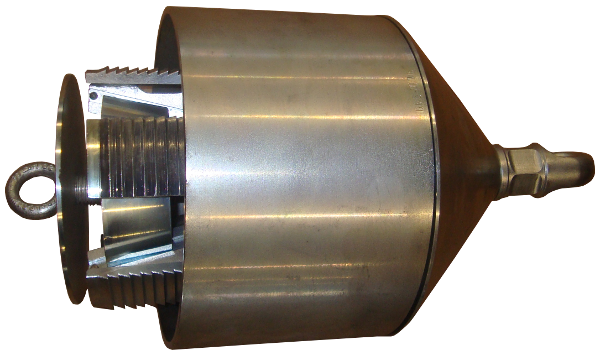

Expander chuck 063
  • for PE pipe with OD 63 mm (2.48") with wall thickness 5-10 mm (0.2-0.4")
  • with external supporting sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • max. pulling force: 110 kN (11 tonnes, 24'200 lbs)

1900.5510.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 072
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 072

Expander chuck 072
  • for PE pipes with OD 72 mm (2.83") with wall thickness 4-7 mm (0.16-0.27")
  • with external supporting sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • maximum pulling force: 110 kN (11 tonnes, 24'200 lbs)

1900.5512.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 075
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 075

Expander chuck 075
  • for PE pipes with OD 75 mm (2.95") with wall thickness 4-10 mm (0.16-0.4")
  • with external supporting sleeve
  • with pulling eye
  • max. pulling force: 110 kN (11 tonnes, 24'200 lbs)

1900.5512.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 090
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 090

Expander chuck 090
  • for PE pipes with OD 90 mm (3.54") and wall thickness 10 mm (0.4")
  • with external supporting sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • max. pulling force: 110 kN (11 tonnes, 24'200 lbs)

1900.5515.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 092
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 092

Expander chuck 092
  • for PE pipes with OD 92 mm (3.62") with wall thickness 6-15 mm (0.25-0.6")
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 110 kN (11 tonnes, 24'200 lbs)

1900.5516.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 110
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 110

Expander chuck 110
  • for PE pipes with OD 110 mm (4.33") with wall thickness 6-16 mm (0.23-0.63")
  • with external support sleeve
  • "Bentonite tight" by front seal sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5520.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 112
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 112

Expander chuck 112
  • for PE pipes with OD 112 mm (4.4") with wall thickness 7-17 mm (0.28-0.67")
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5520.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) >
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) >

Expander chuck 120
  • for PE pipes with OD 120 mm (4.72") with wall thickness 7-14 mm (0.28-0.55")
  • with external support sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5525.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 125
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 125

Expander chuck 125
  • for PE pipes with OD 125 mm (4.92") with wall thickness 7-14 mm (0.28-0.55")
  • with external support sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5525.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 132
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 132

Expander chuck 132
  • for PE pipes with OD 132 mm with 3-10 mm wall thickness
  • with external support sleeve
  • "Bentonite tight" by front seal sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5523.00



HDD Horizontal Directional Drilling > Expander Chucks (high pulling force) > Expander chuck 140
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 140

Expander chuck 140
  • for PE pipes with OD 140 mm (5.5")
  • with wall thickness 7-13 mm (0.25"
  • 0.5")
  • with external support sleeve
  • "Bentonite tight" by front seal sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5524.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 160
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 160

Expander chuck 160
  • for PE pipes with OD 160 mm (6.3") with wall thickness 6-14.5 mm (0.25-0.57")
  • with external support sleeve
  • with pulling eye
  • at the front with seal sleeve
  • Bentonite tight
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5526.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 180
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 180

Expander chuck 180
  • for PE pipes with OD 180 mm (7.0") with wall thickness 10-22 mm (0.4-0.86")
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5527.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 200
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 200

Expander chuck 200
  • for PE pipes with OD 200 mm (7.87")
  • with wall thickness 10
  • 25 mm (0.4-1.0")
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5528.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 225
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 225

Expander chuck 225
  • for PE pipes with OD 225 mm (8.85") with wall thickness 12-25 mm (0.5-1.0")
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5529.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 250
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 250

Expander chuck 250
  • for PE pipes with OD 250 mm with wall thickness 12-25 mm
  • with external support sleeve
  • with pulling eye
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5530.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 280
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 280

Expander chuck 280
  • for PE pipes with OD 280 mm (11")
  • with wall thickness 12-35 mm (0.5"
  • 1.35")
  • with external support sleeve
  • with pulling fork
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5532.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 315
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 315

Expander chuck 315
  • for PE pipes with OD 315 mm (12.4") with wall thickness 14-35 mm (0.55-1.37")
  • with external sleeve
  • with pulling fork
  • max. pulling force: 250 kN (25 tonnes, 55'000 lbs)

1900.5534.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 355
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 355

Expander chuck 355
  • for PE pipes with OD 355 mm (14") with wall 14-35 mm (0.55-1.37")
  • with external sleeve
  • with pulling fork
  • max. pulling force: 400 kN (40 tonnes, 88'000 lbs)

1900.5535.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 400
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 400

Expander chuck 400
  • for PE pipes with OD 400 mm (15.75") wall thickness 14-38 mm (0.55"-1.5")
  • with external sleeve
  • with pulling fork
  • max. pulling force: 400 kN (40 tonnes, 88'000 lbs)

1900.5536.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 450
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 450

Expander chuck 450
  • for PE pipes with OD 450 mm (17.7") with wall thickness 17-41 mm (0.67"-1.6")
  • with external sleeve
  • with pulling fork
  • max. pulling force: 400 kN (40 tonnes, 88'000 lbs)

1900.5538.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 500
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 500

Expander chuck 500
  • for PE pipes with OD 500 mm (19.7") wall thickness 19-46 mm (0.75"-1.8")
  • with external sleeve
  • with pulling fork
  • maximum pulling force: 600 kN (60 tonnes, 132'000 lbs)

1900.5539.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 560
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 560

Expander chuck 560
  • for PE pipes with OD 560 mm (22") wall thickness 21-51 mm (0.83"-2.0")
  • with external sleeve
  • with pulling fork
  • maximum pulling force: 600 kN (60 tonnes, 132'000 lbs)

1900.5554.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 630
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 630

Expander chuck 630
  • for PE pipes with OD 630 mm (24.8") with wall thickness 24-57 mm (0.95"-2.25")
  • with external sleeve
  • with pulling fork
  • maximum pulling force: 600 kN (60 tonnes, 132'000 lbs)

1900.5556.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 710
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 710

Expander chuck 710
  • for PE pipes with OD 710 mm (28") with wall thickness 27-52 mm (1.06"-2.0")
  • with external sleeve
  • with pulling fork
  • maximum pulling force: 600 kN (60 tonnes, 132'000 lbs)

1900.5558.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 800
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Expander chuck 800

Expander chuck 800
  • for PE pipes with OD 800 mm (31.5") with wall thickness 40-69 mm (1.6"-2.7")
  • with external sleeve
  • with pulling fork
  • maximum pulling force: 600 kN (60 tonnes, 132'000 lbs)

1900.5560.01



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Traceable expander chuck 050-092
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Traceable expander chuck 050-092

Traceable expander chuck 050-092
  • adapter for the assembly of the sonde D18 to the expander chucks 50-92 mm (2-3.5")
  • including shock absorber
  • expander chuck and sonde D18 are not inclusive and must be ordered seperately

1900.5518.00



HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Traceable expander chuck 110-250
HDD Horizontal Directional Drilling > Pullers, Expander Chucks (high pulling force) > Traceable expander chuck 110-250

Traceable expander chuck 110-250
  • adapter for the assembly of the sonde D18 to the expander chucks 110-250 mm (4-10")
  • including shock absorber
  • expander chuck and sonde D18 are not inclusive and must be ordered seperately

1900.5522.00



HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M16(box)
HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M16(box)

Pulling eye M16-r (box)
  • with threads M16-right (box)
  • for expander chuck OD 60-92 mm (2.35"-3.62")

1900.5515.40



HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M24-r (box)
HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M24-r (box)

Pulling eye M24-r (box)
  • with threads M24-right (box)
  • for expander chuck OD 110-280 mm (4.3"-11")

1900.5525.40



HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M30-r (box)
HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M30-r (box)

Pulling eye M30-r (box)
  • with threads M30-right (box)
  • for expander chuck OD 315-355 mm (12.4""-14")

1900.5536.40



HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M36-r (box)
HDD Horizontal Directional Drilling > Pulling Eyes > Pulling eye M36-r (box)

Pulling eye M36-r (box)
  • with threads M36-right (box)
  • L=117 mm (4.6")
  • also for expander chuck =D 400-800 mm (16"-32")

1900.5539.40


 up
Technical specifications can be changed without previous notice.
Technical informations depend on ground conditions.
Please note that the photos are only type similar. There are not shown all sizes of the same parts, which means that the effective appearance of the products may differ from the picture.

TERRA AG für Tiefbautechnik - Hauptstrasse 92 - 6260 Reiden - Schweiz - Tel. +41 62 749 10 10 - office@terra-eu.eu
